More Jalview-Chimera goodness

Jalview Developers
1

http://www.jalview.org/builds/spike-mungo/webstart/jalview_2G.jnlp

has a prototype of:

  • create features in Jalview from attributes in Chimera

  • …and vice versa

To demonstrate, set up with

  • Input alignment from URL http://www.jalview.org/examples/uniref50.fa

  • Web Services | Fetch DB Refs | from Uniprot to add features

  • View | Show Sequence Features

  • View a structure in Chimera for FER1_SPIOL
    Now you can:

  • from the Chimera View panel, select “Chimera | Write Jalview features”

    • this copies any visible features to Chimera attributes (except for RESNUM) on mapped residue positions

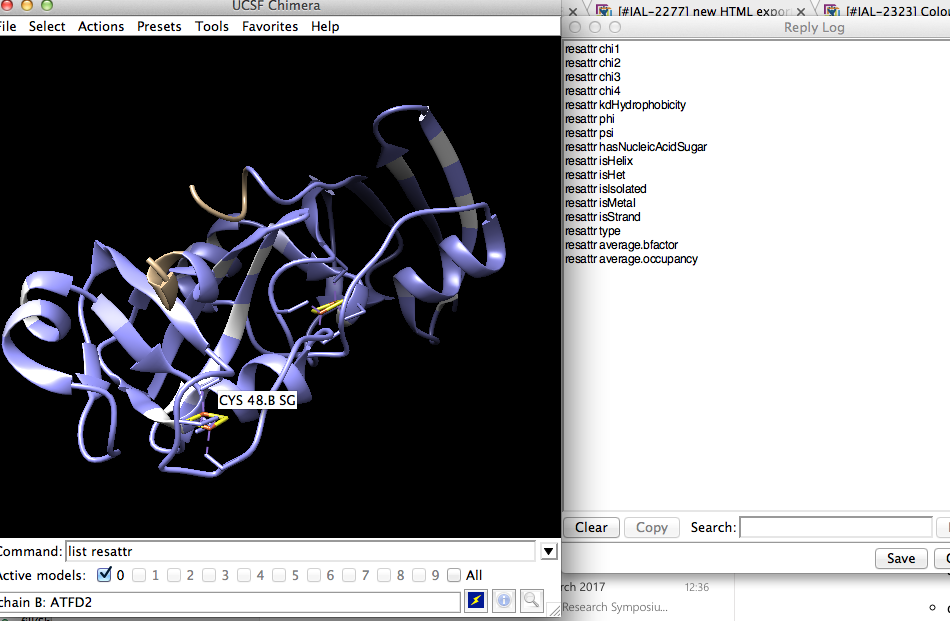

    • to see the new attributes, open the Chimera reply log and command line, and type “list resattr” and “list resi attr jv_domain”
    • attribute names are given a “jv_” prefix as a ‘Jalview namespace’

  • now View | Feature Settings in Jalview, and from the Chimera View panel select “Chimera | Fetch Chimera attributes”

    • a sub-menu with a list of Chimera residue attributes should be offered
      • (this occasionally pauses or hangs as it queries Chimera…if so try again…)
    • click on an attribute name to copy it to Jalview - it should magically appear in the Feature Settings, under group “Chimera”
    • you can now colour / select on the feature in the usual (Jalview) way
    • similarly, numeric valued attributes (e.g. phi, chi1, kdHydrophobicity etc) can have a graduated and/or thresholded colour applied


Note: not merged on to this version (but could be): option added by Jim for ‘create selection from highlight’ in Jalview after selecting in Chimera.

Any feedback on this welcome.

The main remaining related enhancement for this (so far!) is JAL-2294 - support for combining annotations in Jalview into ‘derived’ annotation.

That may take a bit longer…

thanks,

mungo

The University of Dundee is a registered Scottish Charity, No: SC015096

···

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

2

http://www.jalview.org/builds/spike-mungo/webstart/jalview_2G.jnlp

has been updated from the latest develop, which means it now includes

  • ‘create column selection from highlight’ (JAL-1738)
    in addition to

  • ‘read Chimera attributes as features’ (JAL-2296) and

  • ‘write Jalview features as attributes’ (JAL-2295).

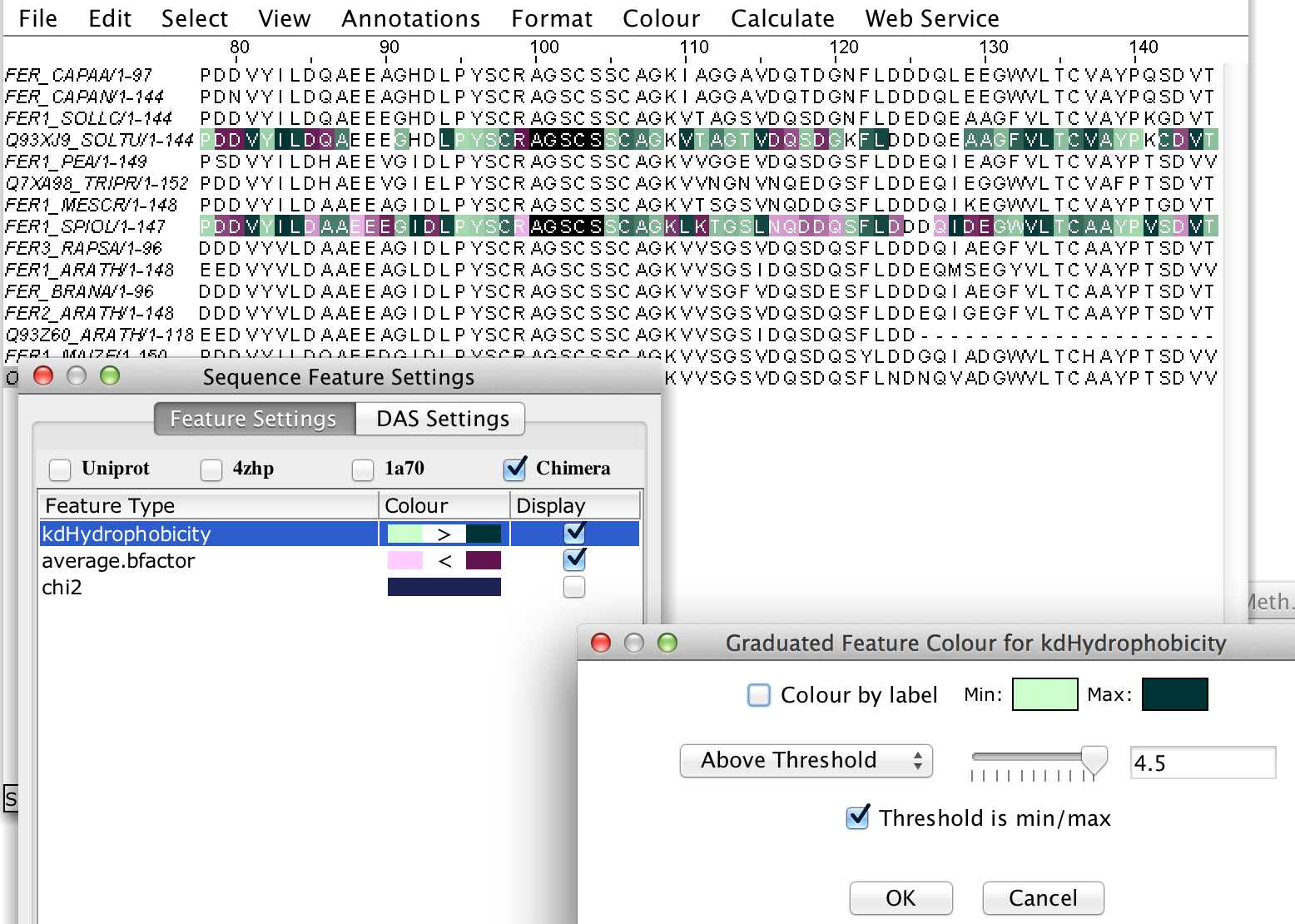

ATT00001.png950×621 159 KB

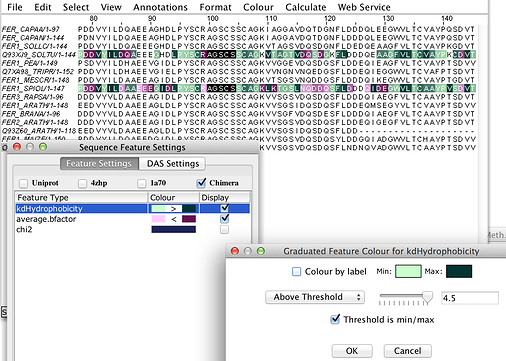

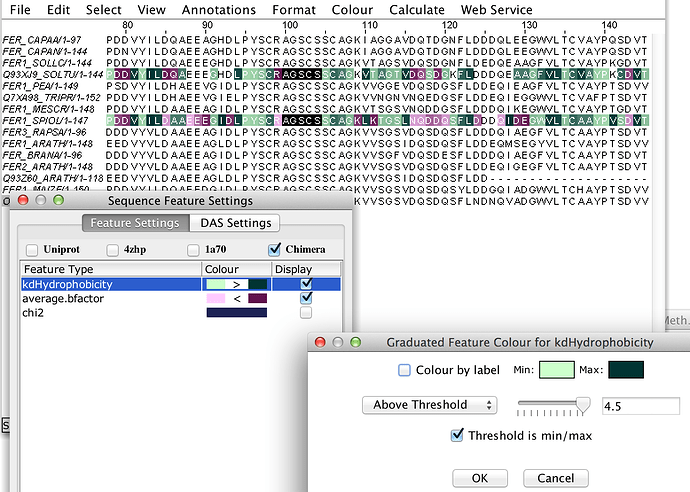

pastedImage.png1556×1110 139 KB

···

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

From: Mungo Carstairs (Staff)
Sent: 16 November 2016 13:45:52
To: Geoffrey Barton (Staff)
Subject: Re: [Jalview-dev] More Jalview-Chimera goodness

spike-mungo updated - now ignores ‘False’ attribute values in Chimera.

Which means isHelix feature is only added where, well, the residue is helix.

For now, features are being added at a single locus only.

A refinement may be to set as a range e.g. (FER2_ARATH) isHelix:75-83 etc.

mungo

The University of Dundee is a registered Scottish Charity, No: SC015096

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

From: Mungo Carstairs (Staff)
Sent: 15 November 2016 16:56:19
To: Geoffrey Barton (Staff)
Subject: Re: [Jalview-dev] More Jalview-Chimera goodness

To clarify my answer…Jalview doesn’t automatically make a graduated colour, you have to configure this yourself in Feature Setttings (right click on feature colour, choose Graduated Colour, etc).

It might be possible to default to a graduated colour scheme if a numeric valued feature is detected.

m

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

From: Mungo Carstairs (Staff)
Sent: 15 November 2016 16:54:41
To: Geoffrey Barton (Staff)
Subject: Re: [Jalview-dev] More Jalview-Chimera goodness

I think I see…

isHelix has values True or False in Chimera (rather than attribute present or absent).

This simplistically transfers to a Jalview feature ‘isHelix’ and every position has it!

I should probably filter out the False values when setting features.

I can set a graduated, thresholded colour for average.bfactor in Jalview though.

mungo

p.s. leaving shortly but can pick up in the morning

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

From: Geoffrey Barton (Staff)
Sent: 15 November 2016 16:23:02
To: Mungo Carstairs (Staff)
Subject: Re: [Jalview-dev] More Jalview-Chimera goodness

Ah Ok. thanks for the pointer.

Although the chimera attributes are getting transferred, but colouring is fixed at the whole domain rather than the region. I tried average.bfactor first and expected this to give me a colour ramp since I assumed average.bfactor was the bfactor averaged for the atoms in each residue rather than over the whole molecule. I then tried is.Helix and is.Strand and these just changed the colour of the whole molecule.

Geoff.

On 15/11/2016 15:50, Mungo Carstairs (Staff) wrote:

Hi Geoff,

In Chimera, menu option Favorites | Reply Log opens the reply log, and Favorites | Command Line opens the command line.

mungo

--
Geoff Barton | Professor of Bioinformatics | Head of Division of Computational Biology
School of Life Sciences | University of Dundee, Scotland, UK | [g.j.barton@dundee.ac.uk](mailto:g.j.barton@dundee.ac.uk)
Tel: +44 1382 385860 | [www.compbio.dundee.ac.uk](http://www.compbio.dundee.ac.uk) | twitter: @gjbarton


The University of Dundee is registered Scottish charity: No.SC015096

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

From: Geoffrey Barton (Staff)
Sent: 15 November 2016 15:44:53
To: Mungo Carstairs (Staff)
Subject: Re: [Jalview-dev] More Jalview-Chimera goodness

HI Mungo,

Just looking at this. Got stuck…

On 15/11/2016 09:24, Mungo Carstairs (Staff) wrote:

http://www.jalview.org/builds/spike-mungo/webstart/jalview_2G.jnlp

has a prototype of:

  • create features in Jalview from attributes in Chimera

  • …and vice versa

To demonstrate, set up with

  • Input alignment from URL http://www.jalview.org/examples/uniref50.fa

  • Web Services | Fetch DB Refs | from Uniprot to add features

  • View | Show Sequence Features

  • View a structure in Chimera for FER1_SPIOL
    Now you can:

  • from the Chimera View panel, select “Chimera | Write Jalview features”

    • this copies any visible features to Chimera attributes (except for RESNUM) on mapped residue positions
    • to see the new attributes, open the Chimera reply log and command line, and type “list resattr” and “list resi attr jv_domain”

Where is the Chimera reply log?

    • attribute names are given a “jv_” prefix as a ‘Jalview namespace’
  • now View | Feature Settings in Jalview, and from the Chimera View panel select “Chimera | Fetch Chimera attributes”
    • a sub-menu with a list of Chimera residue attributes should be offered
      • (this occasionally pauses or hangs as it queries Chimera…if so try again…)
    • click on an attribute name to copy it to Jalview - it should magically appear in the Feature Settings, under group “Chimera”
    • you can now colour / select on the feature in the usual (Jalview) way
    • similarly, numeric valued attributes (e.g. phi, chi1, kdHydrophobicity etc) can have a graduated and/or thresholded colour applied

Note: not merged on to this version (but could be): option added by Jim for ‘create selection from highlight’ in Jalview after selecting in Chimera.

Any feedback on this welcome.

The main remaining related enhancement for this (so far!) is JAL-2294 - support for combining annotations in Jalview into ‘derived’ annotation.

That may take a bit longer…

thanks,

mungo

The University of Dundee is a registered Scottish Charity, No: SC015096

_______________________________________________
Jalview-dev mailing list
[Jalview-dev@jalview.org](mailto:Jalview-dev@jalview.org)
[http://www.compbio.dundee.ac.uk/mailman/listinfo/jalview-dev](http://www.compbio.dundee.ac.uk/mailman/listinfo/jalview-dev)


--
Geoff Barton | Professor of Bioinformatics | Head of Division of Computational Biology
School of Life Sciences | University of Dundee, Scotland, UK | [g.j.barton@dundee.ac.uk](mailto:g.j.barton@dundee.ac.uk)
Tel: +44 1382 385860 | [www.compbio.dundee.ac.uk](http://www.compbio.dundee.ac.uk) | twitter: @gjbarton


The University of Dundee is registered Scottish charity: No.SC015096

Mungo Carstairs
Jalview Computational Scientist
The Barton Group
Division of Computational Biology
School of Life Sciences
University of Dundee, Dundee, Scotland, UK.
www.jalview.org
www.compbio.dundee.ac.uk

3

Hi.

···

On 23/11/2016 12:09, Mungo Carstairs (Staff) wrote:

  * 'create column selection from highlight' (JAL-1738)

This is scheduled for tomorrow's release, so feedback would be appreciated !

Jim.

--
-------------------------------------------------------------------
Dr JB Procter, Jalview Coordinator, The Barton Group
Division of Computational Biology, School of Life Sciences
